| Place of Origin: | America |
| Brand Name: | TYCO |
| Certification: | CE |

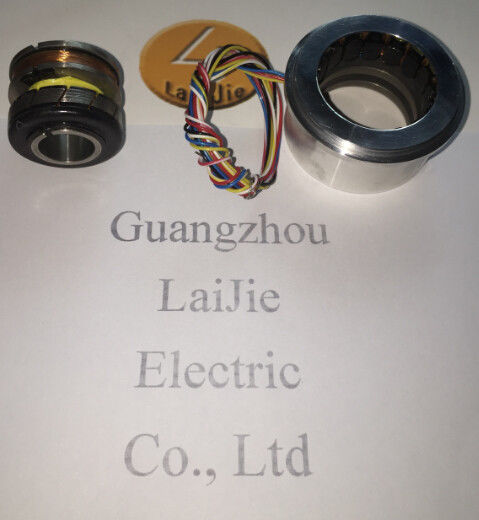

| Model Number: | V23401-U2020-B210 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | CARTON |
| Delivery Time: | In stock |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PCS/WEEK |
| V23401-U2020-B210: | V23401-U2020-B210 | TYCO: | TYCO |
|---|---|---|---|
| America: | America | Material: | Iron |
| Color: | Black | Wires: | 6wires |
| Temperature: | -50-120 |
Guang Zhou Lai Jie Electric Co.,LTD
Please contact with “Tommy” for the price
| Size | Pairs of Poles(Speed) | Angular error range | |||||||
| ±4' | ±6' | ±7' | ±8' | ±10' | ±15' | ±20' | Transformation ratio | ||
| 15 | 1 | X | X | X | X | 0.5 | |||
| 3 | X | X | X | X | 0.5 | ||||
| 1 | X | X | X | X | 0.5 | ||||
| 1 | X | X | X | X | 0.5 |
||||
V23401-U2020-B210
V23401-U1016-B133
V23401-U2017-B201
V23401-U2017-B202
V23401-U2017-B233
V23401-U2020-B201
V23401-U2020-B209
V23401-U2020-B209
V23401-U2020-B210
V23401-T2014-B209
V23401-T201E-E209
V23401-T2G09-E202
V23401-H6009-B601
V23401-D1001-B114
V23401-T2002-B209
V23401-T2009-B202
V23401-U1016-B110
V23401-T2009-E202
V23401-U6119-B609
V23401-U6019-B609
V23401-S1201-C610
V23401-T2009-B202
V23401-T2099-C502
V23401-H1005-D101
V23401-U6019-B609
V23401-T2679-C302
V23401-U6119-B609
V23401-U6019-B609
The term used for the basic version is a resolver with one
pair of poles (1-speed-resolver).
The number of pairs of poles indicates how often the sine
distribution of the rotor and stator windings is repeated dur
ing one revolution. The higher the number of pairs of poles,
the higher the mechanical precision of the resolver. The
location deviation of the radial offset increases. With multiple
pairs of poles, the absolute angle data are lost, but a higher
resolution is possible after digital conversion of the resolver
signals.
| Wiring Diagram | |
| Exciation+ | Red |
| Exciation- | Black |
| Sin+ | White |
| Sin- | Blue |
| Cos+ | Yellow |
| Cos- | Green |
Residual voltage Vresidual
The residual voltage is the actual value of the voltage remaining when VS1-S3 or VS2-S4 takes on the nominal value of zero.
Vresidual < 0.7 % of rT · VR1-R2
Angle error spread ∆ϕ
The angle error spread is the deviation (unit: arcmin = ′) of the angle represented by the electrical signals from the correspond
ing actual mechanical angle.
∆ϕ = ϕel – ϕmech · p with p = pairs of poles
Applicable definition: the angle error spread lies within ± n arc minutes in any angular position of the specified band.
DC resistance values
The ohmic resistance values are based on an ambient temperature of 22 °C and change with temperature by 0.39 % / K.
Phase shift ø
The phase shift ø is the lag between the input signal and output signal.
Transformation ratio rT
The transformation ratio rT is the ratio between the input voltage and the maximum output voltage.
rT = VS1-S3 max / VR1-R2
rT = VS2-S4 max / VR1-R2
Impedance values ZRO; ZRS; ZSO; ZSS
The impedance values are the ac resistance values and depend on the frequency. Especially ZSO is the value relevant for the
output capability of the resolver, while ZRS is decisive for the load on the energizing signal source.
