| Place of Origin: | America |
| Brand Name: | TYCO |
| Certification: | CE |
| Model Number: | V23401-U1016-B109 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | in stock |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 10000pcs/week |
| V23401-U1016-B109: | V23401-U1016-B109 | TYCO: | TYCO |
|---|---|---|---|
| America: | America | Material: | Iron |
| Color: | Black | Wires: | 6wires |
| Temperature: | -50-120 |
Guang Zhou Lai Jie Electric Co.,LTD
Please contact with “Tommy” for the price
V23401-U1016-B109
V23401-U6019-B609
V23401-S1201-C610
V23401-T2015-B201
V23401-H2009-B202
V23401-D1001-B114
V23401-D1001-B122
V23401-D1001-B101
V23401-D1001-B102
V23401-D1008-B114
V23401-D1008-B122
V23401-D1008-B101
V23401-D1008-B102
V23401-D1009-B114
V23401-D1009-B122
V23401-D1009-B101
V23401-D1009-B102
V23401-S1001-B122
V23401-S1001-B101
V23401-S1001-B109
V23401-S1001-B110
V23401-T1002-B114
V23401-H1002-B114
V23401-T1002-B122
V23401-H1002-B101
V23401-T1002-B102
V23401-H1002-B102
V23401-T1005-B114
V23401-H1005-B114

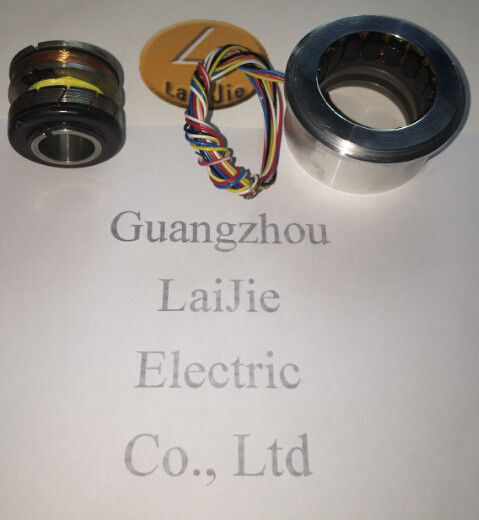

Essentially, the resolver mechanically consists of a stationary
stator and a movable rotor. Electrically it consists of of a
transformer for supplying the rotor with power and a second
transformer for determining angles.
The first transformer has a concentric design and is function
ally independent of angle values. The second, angle-depen
dent transformer is made of a stator winding and a rotor
winding. The windings of these two transformer components
are designed such that the number of windings in the
grooves correspond to the values of a sinoid.
| Wiring Diagram | |
| Exciation+ | Red |
| Exciation- | Black |
| Sin+ | White |
| Sin- | Blue |
| Cos+ | Yellow |
| Cos- | Green |
To be close to our customers worldwide is an essential part of our success.
The Tyco Electronics AMP Website is more than merely an Internet-guide.
It is an innovative and interactive source for application tips, product update
and technical information. This Website is available in eight languages. With
our StepSearch-Software you can easily surf through all of our product lines.
| Size | Pairs of Poles(Speed) | Angular error range | |||||||
| ±4' | ±6' | ±7' | ±8' | ±10' | ±15' | ±20' | Transformation ratio | ||
| 15 | 1 | X | X | X | X | 0.5 | |||
| 3 | X | X | X | X | 0.5 | ||||
| 1 | X | X | X | X | 0.5 | ||||
| 1 | X | X | X | X | 0.5 |
||||
Product and machine literature quick and easy by fax.
A wide range of products also requires an extensive literature stock. We can provide you with brochures, catalogs and flyers for every product
program of your interest.
The use of sensors for determining angles increases with
progressive automation. The hollow shaft resolver has long
won its own steady position on the market and can nowadays
be found in many modern, high-precision control systems.
Due to its design, the hollow shaft resolver boasts of a ser
vice live above average. Reliability as well as high precision
and low space requirements supplement its favorable cha
racteristics. It remains fully operable even under extreme
environmental conditions.
Negative values are realized by reversing the direction of the
winding. The stator coils consist of two similar windings that
are fitted in a relative position to each other rotated by 90°.
If the rotor winding is energized, a sinusoidal magnetic flux is
created that induces voltages in the stator coils as a function
of the relative angular position of the rotor and stator. The
amplitudes of the two voltages correspond to the sine or
cosine. Thus, using a suitable evaluation circuit, it is possible
to obtain the absolute angle data.
